(1).With sink and nozzles.

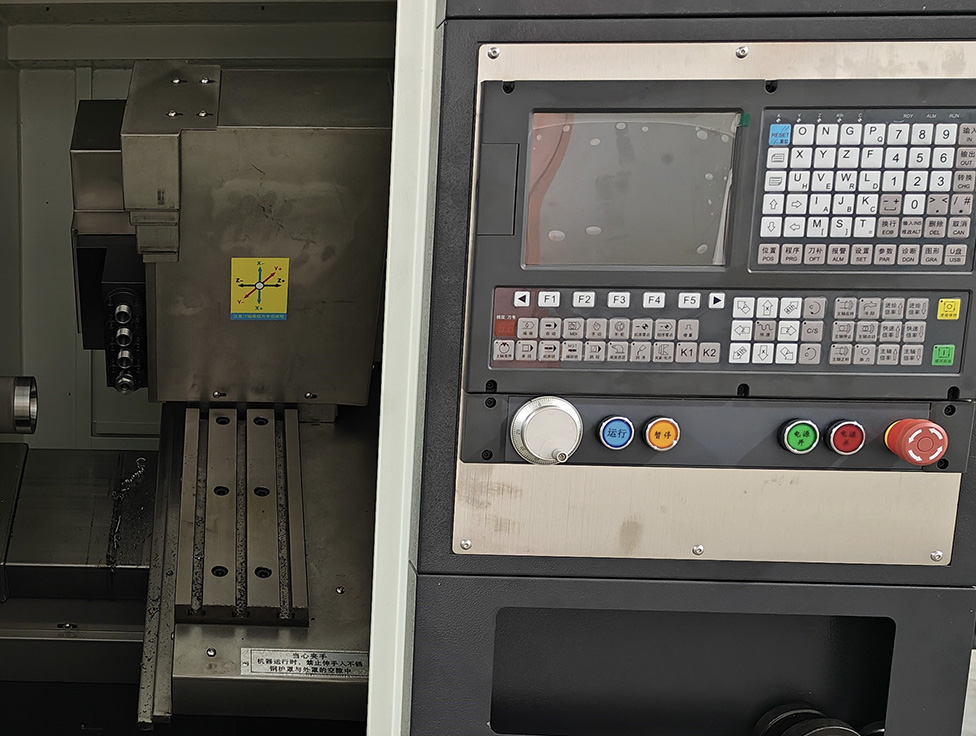

(2).High performance Industrial Grade CNC Controller,
(3).CNC machine tools based entirely on the design and manufacture, reflects the structural integrity of facilitate future design ideas.
(4). The standard spec includes MPG hand wheel.
(5). USB port for program input,
(6). Control speed by G code.
(7). Selection of high -quality casting materials, more compact.
(8). A collection of ball screw, bearings and couplings with high precision positioning, while adding an oil lubrication system, to protect your machine precision, extended service life.
(9). 380V three-phase AC power supply.
(10). Safety electrical components of high quality.
(11). Applicable industry: Mass production of bar materials, including copper, aluminum, steel, stainless steel
Technical parameters |
|||
Max Spindle Speed |
rpm |
3500(4000 max) |
|
Finish after machining |
|
1.6Ra |
|
Spindle hole |
mm |
25 |
|
Repeat positioning accuracy |
mm |
±0.01 |
|
Unilateral cutting amount |
mm |
2mm (3mm max) |
|
Spindle Power |
kw |
3.7Kw Servo motor |
|
X/Z Axis Motor |
|
1.2Kw Servo motor |
|
Y Axis Motor |
|
1.2Kw Servo motor |
|
Power head |
|
3 tools standard |
4 tools optional |
X Axis Travel |
mm |
500 |
|
Z Axis Travel |
mm |
180 |
|
Fast feed rate |
m/min |
20m/min (30m/min max) |
|
Clamping Diameter |
mm |
Hydraumaticφ40mm(φ50 max) |
|
Cutting Feed Rate |
mm/rev |
0.001-500 |
|
Cutting Length |
mm |
180 |
|
Cutting Length With Lathe Center Frame |
mm |
120 |
|
Machine Bed Inclination |
° |
30 |
|
Controller |
KY |
Yornew Industrial CNC Controller |
|
Ball Screw |
|
Taiwan P4 |
|
Linear Guide |
|
Taiwan P4 Linear Guide rail |
|
Weight |
kg |
1800-2200 |
|
Machine Size |
Mm |
1700*1200*1800 |
|
Packing Size |
Mm |
1950*1300*2050mm |

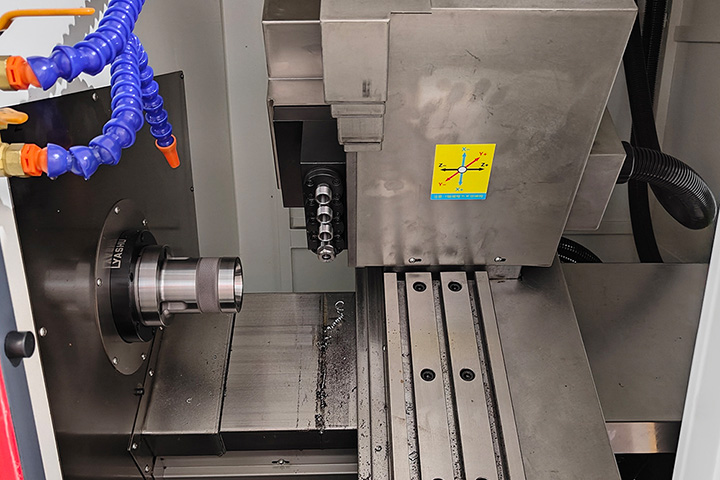

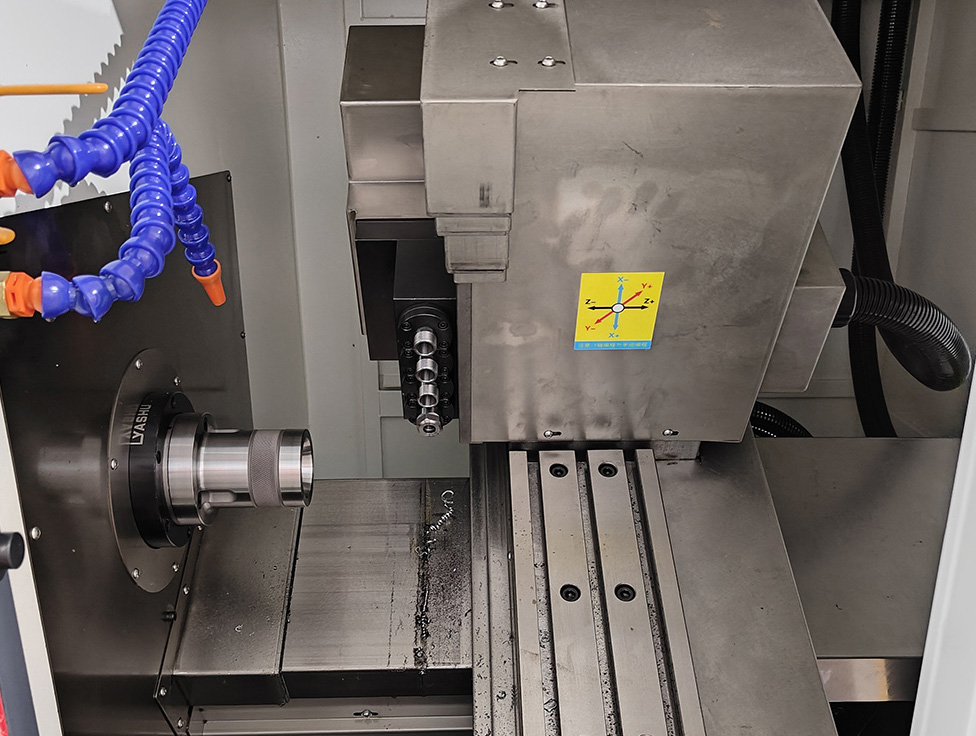

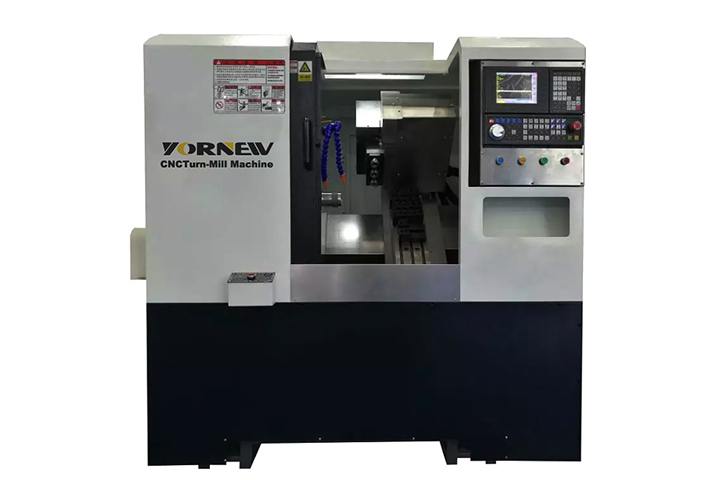

CX500 Middle CNCTurn-Mill Machine
CX500 Middle CNCTurn-Mill Machine
CX500 Middle CNCTurn-Mill Machine
CX500 Middle CNCTurn-Mill Machine
